MLForecast

Full pipeline encapsulation

Data

This shows an example with just 4 series of the M4 dataset. If you want to run it yourself on all of them, you can refer to this notebook.

import random
import tempfile

import lightgbm as lgb
import matplotlib.pyplot as plt
import numpy as np
import xgboost as xgb
from sklearn.linear_model import LinearRegression
from utilsforecast.feature_engineering import time_features
from utilsforecast.plotting import plot_series

from mlforecast.lag_transforms import ExpandingMean, ExponentiallyWeightedMean, RollingMean
from mlforecast.lgb_cv import LightGBMCV
from mlforecast.target_transforms import Differences, LocalStandardScaler
from mlforecast.utils import generate_daily_series

df = pd.read_parquet('https://datasets-nixtla.s3.amazonaws.com/m4-hourly.parquet')
ids = df['unique_id'].unique()
random.seed(0)
sample_ids = random.choices(ids, k=4)
sample_df = df[df['unique_id'].isin(sample_ids)]
sample_df

	unique_id	ds	y
86796	H196	1	11.8
86797	H196	2	11.4
86798	H196	3	11.1
86799	H196	4	10.8
86800	H196	5	10.6
…	…	…	…
325235	H413	1004	99.0
325236	H413	1005	88.0
325237	H413	1006	47.0
325238	H413	1007	41.0
325239	H413	1008	34.0

We now split this data into train and validation.

horizon = 48
valid = sample_df.groupby('unique_id').tail(horizon)
train = sample_df.drop(valid.index)
train.shape, valid.shape

((3840, 3), (192, 3))

---

source

MLForecast

 MLForecast (models:Union[sklearn.base.BaseEstimator,List[sklearn.base.Bas
             eEstimator],Dict[str,sklearn.base.BaseEstimator]],
             freq:Union[int,str], lags:Optional[Iterable[int]]=None, lag_t
             ransforms:Optional[Dict[int,List[Union[Callable,Tuple[Callabl
             e,Any]]]]]=None,
             date_features:Optional[Iterable[Union[str,Callable]]]=None,
             num_threads:int=1, target_transforms:Optional[List[Union[mlfo
             recast.target_transforms.BaseTargetTransform,mlforecast.targe
             t_transforms._BaseGroupedArrayTargetTransform]]]=None,
             lag_transforms_namer:Optional[Callable]=None)

Forecasting pipeline

	Type	Default	Details
models	Union		Models that will be trained and used to compute the forecasts.
freq	Union		Pandas offset, pandas offset alias, e.g. ‘D’, ‘W-THU’ or integer denoting the frequency of the series.
lags	Optional	None	Lags of the target to use as features.
lag_transforms	Optional	None	Mapping of target lags to their transformations.
date_features	Optional	None	Features computed from the dates. Can be pandas date attributes or functions that will take the dates as input.
num_threads	int	1	Number of threads to use when computing the features.
target_transforms	Optional	None	Transformations that will be applied to the target before computing the features and restored after the forecasting step.
lag_transforms_namer	Optional	None	Function that takes a transformation (either function or class), a lag and extra arguments and produces a name.

The MLForecast object encapsulates the feature engineering + training the models + forecasting

fcst = MLForecast(
    models=lgb.LGBMRegressor(random_state=0, verbosity=-1),
    freq=1,
    lags=[24 * (i+1) for i in range(7)],
    lag_transforms={
        48: [ExponentiallyWeightedMean(alpha=0.3)],
    },
    num_threads=1,
    target_transforms=[Differences([24])],
)
fcst

MLForecast(models=[LGBMRegressor], freq=1, lag_features=['lag24', 'lag48', 'lag72', 'lag96', 'lag120', 'lag144', 'lag168', 'exponentially_weighted_mean_lag48_alpha0.3'], date_features=[], num_threads=1)

Once we have this setup we can compute the features and fit the model.

---

source

MLForecast.fit

 MLForecast.fit
                 (df:Union[pandas.core.frame.DataFrame,polars.dataframe.fr
                 ame.DataFrame], id_col:str='unique_id',
                 time_col:str='ds', target_col:str='y',
                 static_features:Optional[List[str]]=None,
                 dropna:bool=True, keep_last_n:Optional[int]=None,
                 max_horizon:Optional[int]=None, prediction_intervals:Opti
                 onal[mlforecast.utils.PredictionIntervals]=None,
                 fitted:bool=False, as_numpy:bool=False,
                 weight_col:Optional[str]=None)

Apply the feature engineering and train the models.

	Type	Default	Details
df	Union		Series data in long format.
id_col	str	unique_id	Column that identifies each serie.
time_col	str	ds	Column that identifies each timestep, its values can be timestamps or integers.
target_col	str	y	Column that contains the target.
static_features	Optional	None	Names of the features that are static and will be repeated when forecasting. If None, will consider all columns (except id_col and time_col) as static.
dropna	bool	True	Drop rows with missing values produced by the transformations.
keep_last_n	Optional	None	Keep only these many records from each serie for the forecasting step. Can save time and memory if your features allow it.
max_horizon	Optional	None	Train this many models, where each model will predict a specific horizon.
prediction_intervals	Optional	None	Configuration to calibrate prediction intervals (Conformal Prediction).
fitted	bool	False	Save in-sample predictions.
as_numpy	bool	False	Cast features to numpy array.
weight_col	Optional	None	Column that contains the sample weights.
Returns	MLForecast		Forecast object with series values and trained models.

fcst = MLForecast(
    models=lgb.LGBMRegressor(random_state=0, verbosity=-1),
    freq=1,
    lags=[24 * (i+1) for i in range(7)],
    lag_transforms={
        48: [ExponentiallyWeightedMean(alpha=0.3)],
    },
    num_threads=1,
    target_transforms=[Differences([24])],
)

train2 = train.copy()
train2['weight'] = np.random.default_rng(seed=0).random(train2.shape[0])
fcst.fit(train2, weight_col='weight', as_numpy=True).predict(5)

	unique_id	ds	LGBMRegressor
0	H196	961	16.079737
1	H196	962	15.679737
2	H196	963	15.279737
3	H196	964	14.979737
4	H196	965	14.679737
5	H256	961	13.279737
6	H256	962	12.679737
7	H256	963	12.379737
8	H256	964	12.079737
9	H256	965	11.879737
10	H381	961	56.939977
11	H381	962	40.314608
12	H381	963	33.859013
13	H381	964	15.498139
14	H381	965	25.722674
15	H413	961	25.131194
16	H413	962	19.177421
17	H413	963	21.250829
18	H413	964	18.743132
19	H413	965	16.027263

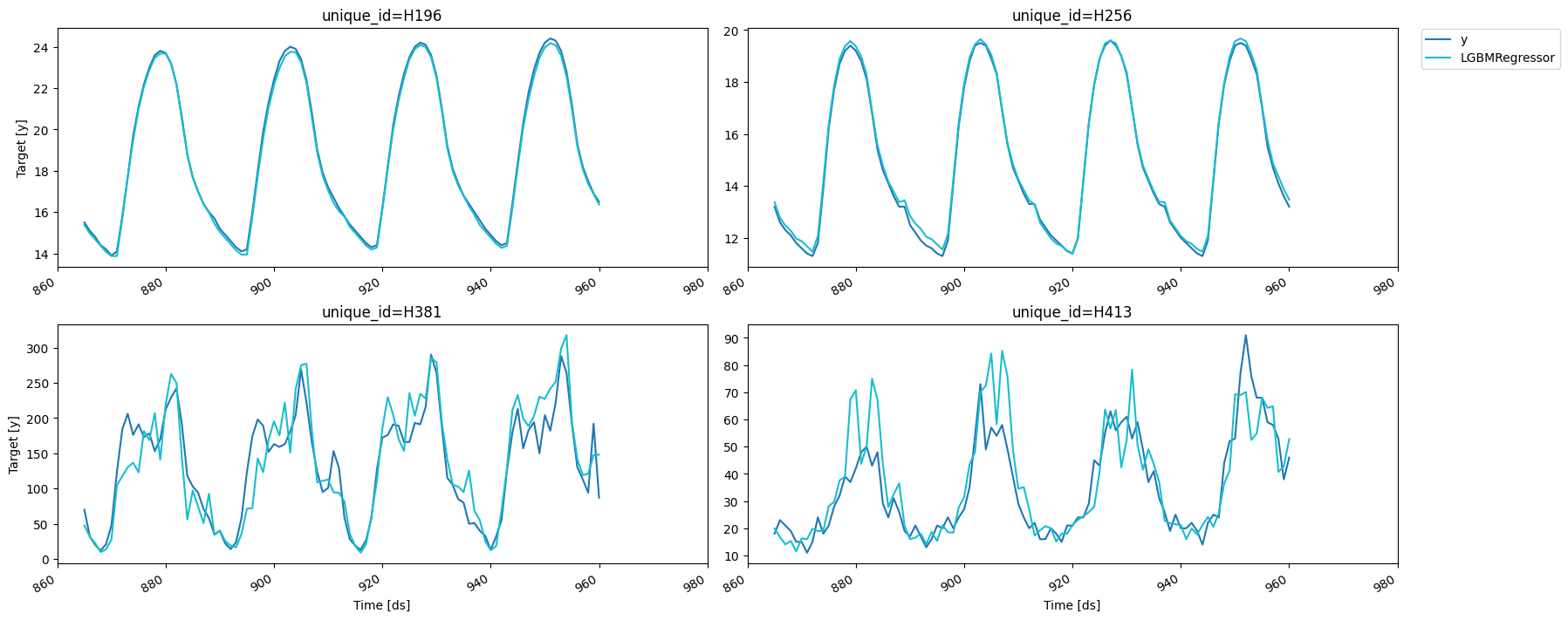

fcst.cross_validation(train2, n_windows=2, h=5, weight_col='weight', as_numpy=True)

	unique_id	ds	cutoff	y	LGBMRegressor
0	H196	951	950	24.4	24.288850
1	H196	952	950	24.3	24.188850
2	H196	953	950	23.8	23.688850
3	H196	954	950	22.8	22.688850
4	H196	955	950	21.2	21.088850
5	H256	951	950	19.5	19.688850
6	H256	952	950	19.4	19.488850
7	H256	953	950	18.9	19.088850
8	H256	954	950	18.3	18.388850
9	H256	955	950	17.0	17.088850
10	H381	951	950	182.0	208.327270
11	H381	952	950	222.0	247.768326
12	H381	953	950	288.0	277.965997
13	H381	954	950	264.0	321.532857
14	H381	955	950	191.0	206.316903
15	H413	951	950	77.0	60.972692
16	H413	952	950	91.0	54.936494
17	H413	953	950	76.0	73.949203
18	H413	954	950	68.0	67.087417
19	H413	955	950	68.0	75.896022
20	H196	956	955	19.3	19.287891
21	H196	957	955	18.2	18.187891
22	H196	958	955	17.5	17.487891
23	H196	959	955	16.9	16.887891
24	H196	960	955	16.5	16.487891
25	H256	956	955	15.5	15.687891
26	H256	957	955	14.7	14.787891
27	H256	958	955	14.1	14.287891
28	H256	959	955	13.6	13.787891
29	H256	960	955	13.2	13.387891
30	H381	956	955	130.0	124.117828
31	H381	957	955	113.0	119.180350
32	H381	958	955	94.0	105.356552
33	H381	959	955	192.0	127.095338
34	H381	960	955	87.0	119.875754
35	H413	956	955	59.0	67.993133
36	H413	957	955	58.0	69.869815
37	H413	958	955	53.0	34.717960
38	H413	959	955	38.0	47.665581
39	H413	960	955	46.0	45.940137

fcst.fit(train, fitted=True);

---

source

MLForecast.save

 MLForecast.save (path:Union[str,pathlib.Path])

Save forecast object

	Type	Details
path	Union	Directory where artifacts will be stored.
Returns	None

---

source

MLForecast.load

 MLForecast.load (path:Union[str,pathlib.Path])

Load forecast object

	Type	Details
path	Union	Directory with saved artifacts.
Returns	MLForecast

---

source

MLForecast.update

 MLForecast.update
                    (df:Union[pandas.core.frame.DataFrame,polars.dataframe
                    .frame.DataFrame])

Update the values of the stored series.

	Type	Details
df	Union	Dataframe with new observations.
Returns	None

---

source

MLForecast.make_future_dataframe

 MLForecast.make_future_dataframe (h:int)

Create a dataframe with all ids and future times in the forecasting horizon.

	Type	Details
h	int	Number of periods to predict.
Returns	Union	DataFrame with expected ids and future times

expected_future = fcst.make_future_dataframe(h=1)
expected_future

	unique_id	ds
0	H196	961
1	H256	961
2	H381	961
3	H413	961

---

source

MLForecast.get_missing_future

 MLForecast.get_missing_future (h:int, X_df:~DFType)

Get the missing id and time combinations in X_df.

	Type	Details
h	int	Number of periods to predict.
X_df	DFType	Dataframe with the future exogenous features. Should have the id column and the time column.
Returns	DFType	DataFrame with expected ids and future times missing in X_df

missing_future = fcst.get_missing_future(h=1, X_df=expected_future.head(2))
pd.testing.assert_frame_equal(
    missing_future,
    expected_future.tail(2).reset_index(drop=True)
)

---

source

MLForecast.forecast_fitted_values

 MLForecast.forecast_fitted_values
                                    (level:Optional[List[Union[int,float]]
                                    ]=None)

Access in-sample predictions.

	Type	Default	Details
level	Optional	None	Confidence levels between 0 and 100 for prediction intervals.
Returns	Union		Dataframe with predictions for the training set

fcst.forecast_fitted_values()

	unique_id	ds	y	LGBMRegressor
0	H196	193	12.7	12.671271
1	H196	194	12.3	12.271271
2	H196	195	11.9	11.871271
3	H196	196	11.7	11.671271
4	H196	197	11.4	11.471271
…	…	…	…	…
3067	H413	956	59.0	68.280574
3068	H413	957	58.0	70.427570
3069	H413	958	53.0	44.767965
3070	H413	959	38.0	48.691257
3071	H413	960	46.0	46.652238

fcst.forecast_fitted_values(level=[90])

	unique_id	ds	y	LGBMRegressor	LGBMRegressor-lo-90	LGBMRegressor-hi-90
0	H196	193	12.7	12.671271	12.540634	12.801909
1	H196	194	12.3	12.271271	12.140634	12.401909
2	H196	195	11.9	11.871271	11.740634	12.001909
3	H196	196	11.7	11.671271	11.540634	11.801909
4	H196	197	11.4	11.471271	11.340634	11.601909
…	…	…	…	…	…	…
3067	H413	956	59.0	68.280574	58.846640	77.714509
3068	H413	957	58.0	70.427570	60.993636	79.861504
3069	H413	958	53.0	44.767965	35.334031	54.201899
3070	H413	959	38.0	48.691257	39.257323	58.125191
3071	H413	960	46.0	46.652238	37.218304	56.086172

Once we’ve run this we’re ready to compute our predictions.

---

source

MLForecast.predict

 MLForecast.predict (h:int,
                     before_predict_callback:Optional[Callable]=None,
                     after_predict_callback:Optional[Callable]=None,
                     new_df:Optional[~DFType]=None,
                     level:Optional[List[Union[int,float]]]=None,
                     X_df:Optional[~DFType]=None,
                     ids:Optional[List[str]]=None)

Compute the predictions for the next h steps.

	Type	Default	Details
h	int		Number of periods to predict.
before_predict_callback	Optional	None	Function to call on the features before computing the predictions. This function will take the input dataframe that will be passed to the model for predicting and should return a dataframe with the same structure. The series identifier is on the index.
after_predict_callback	Optional	None	Function to call on the predictions before updating the targets. This function will take a pandas Series with the predictions and should return another one with the same structure. The series identifier is on the index.
new_df	Optional	None	Series data of new observations for which forecasts are to be generated. This dataframe should have the same structure as the one used to fit the model, including any features and time series data. If new_df is not None, the method will generate forecasts for the new observations.
level	Optional	None	Confidence levels between 0 and 100 for prediction intervals.
X_df	Optional	None	Dataframe with the future exogenous features. Should have the id column and the time column.
ids	Optional	None	List with subset of ids seen during training for which the forecasts should be computed.
Returns	DFType		Predictions for each serie and timestep, with one column per model.

predictions = fcst.predict(horizon)

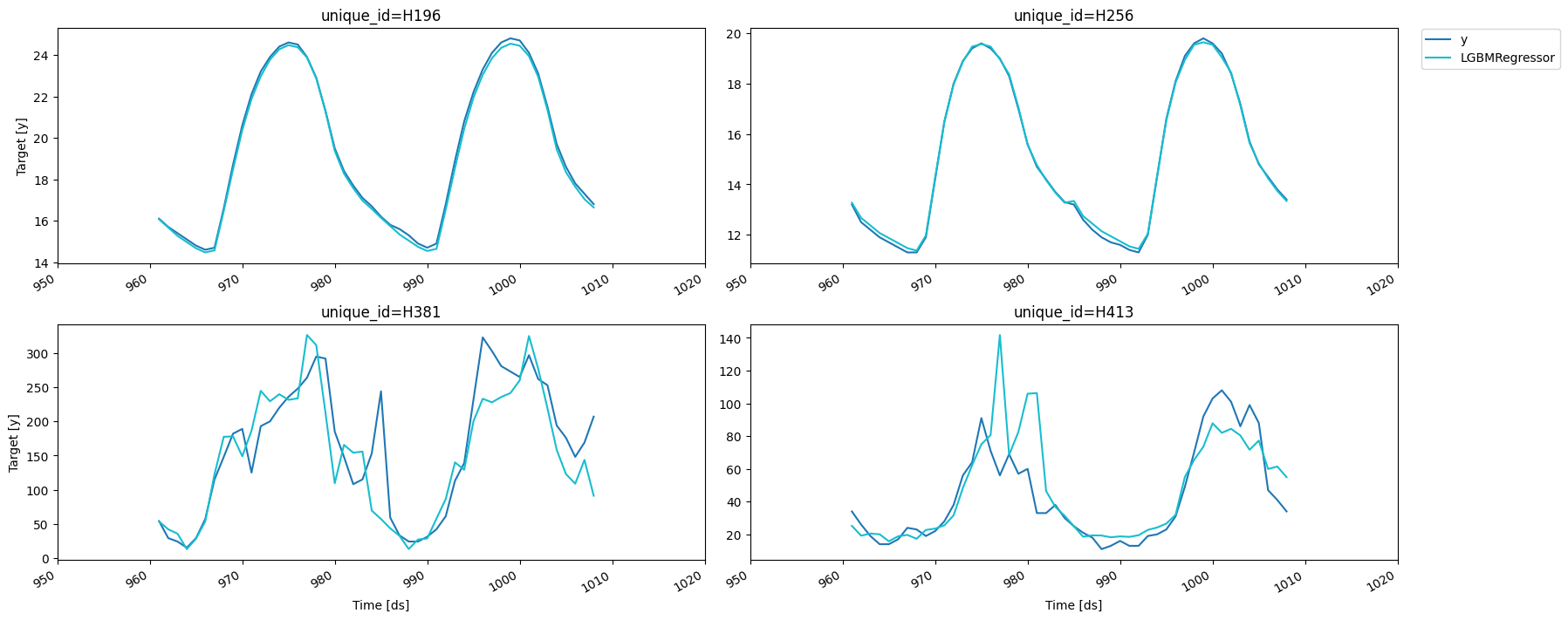

We can see at a couple of results.

results = valid.merge(predictions, on=['unique_id', 'ds'])
fig = plot_series(forecasts_df=results)

Prediction intervals

With MLForecast, you can generate prediction intervals using Conformal Prediction. To configure Conformal Prediction, you need to pass an instance of the PredictionIntervals class to the prediction_intervals argument of the fit method. The class takes three parameters: n_windows, h and method.

• n_windows represents the number of cross-validation windows used to calibrate the intervals
• h is the forecast horizon
• method can be conformal_distribution or conformal_error; conformal_distribution (default) creates forecasts paths based on the cross-validation errors and calculate quantiles using those paths, on the other hand conformal_error calculates the error quantiles to produce prediction intervals. The strategy will adjust the intervals for each horizon step, resulting in different widths for each step. Please note that a minimum of 2 cross-validation windows must be used.

fcst.fit(
    train,
    prediction_intervals=PredictionIntervals(n_windows=3, h=48)
);

After that, you just have to include your desired confidence levels to the predict method using the level argument. Levels must lie between 0 and 100.

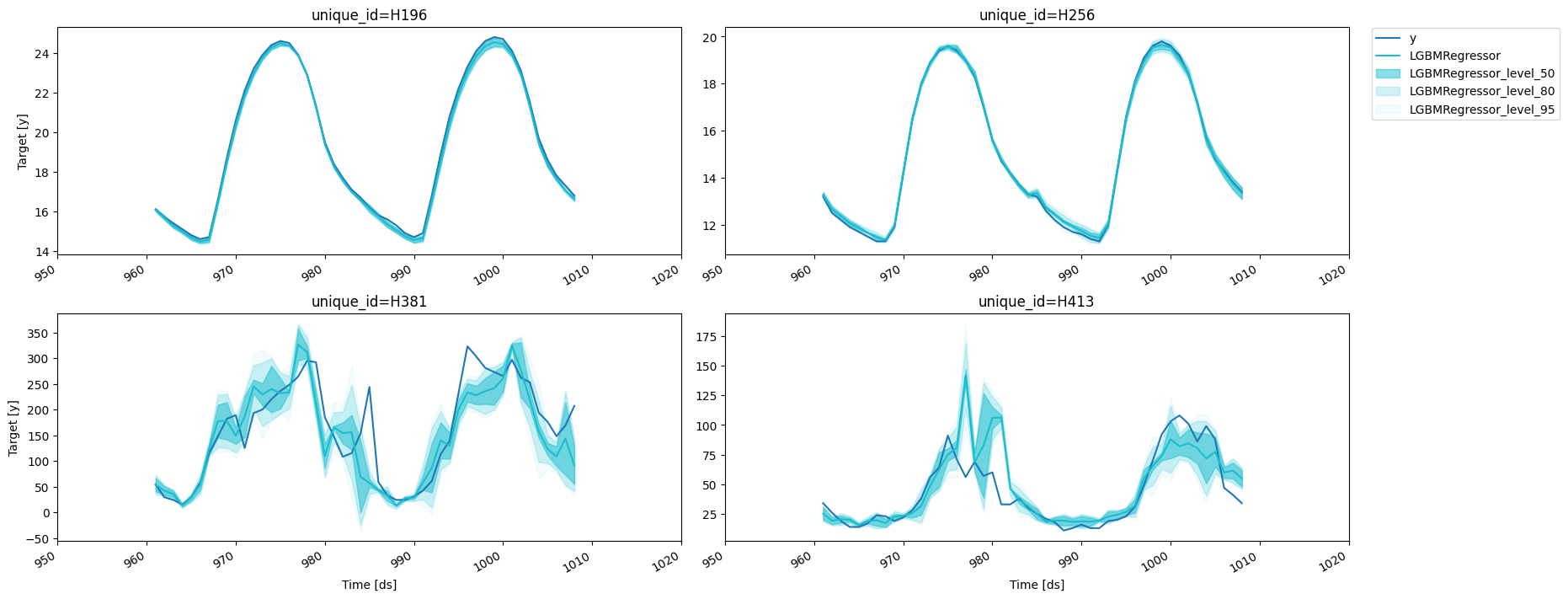

predictions_w_intervals = fcst.predict(48, level=[50, 80, 95])
predictions_w_intervals.head()

	unique_id	ds	LGBMRegressor	LGBMRegressor-lo-95	LGBMRegressor-lo-80	LGBMRegressor-lo-50	LGBMRegressor-hi-50	LGBMRegressor-hi-80	LGBMRegressor-hi-95
0	H196	961	16.071271	15.958042	15.971271	16.005091	16.137452	16.171271	16.184501
1	H196	962	15.671271	15.553632	15.553632	15.578632	15.763911	15.788911	15.788911
2	H196	963	15.271271	15.153632	15.153632	15.162452	15.380091	15.388911	15.388911
3	H196	964	14.971271	14.858042	14.871271	14.905091	15.037452	15.071271	15.084501
4	H196	965	14.671271	14.553632	14.553632	14.562452	14.780091	14.788911	14.788911

Let’s explore the generated intervals.

results = valid.merge(predictions_w_intervals, on=['unique_id', 'ds'])
fig = plot_series(forecasts_df=results, level=[50, 80, 95])

If you want to reduce the computational time and produce intervals with the same width for the whole forecast horizon, simple pass h=1 to the PredictionIntervals class. The caveat of this strategy is that in some cases, variance of the absolute residuals maybe be small (even zero), so the intervals may be too narrow.

fcst.fit(
    train,
    prediction_intervals=PredictionIntervals(n_windows=3, h=1)
);

predictions_w_intervals_ws_1 = fcst.predict(48, level=[80, 90, 95])

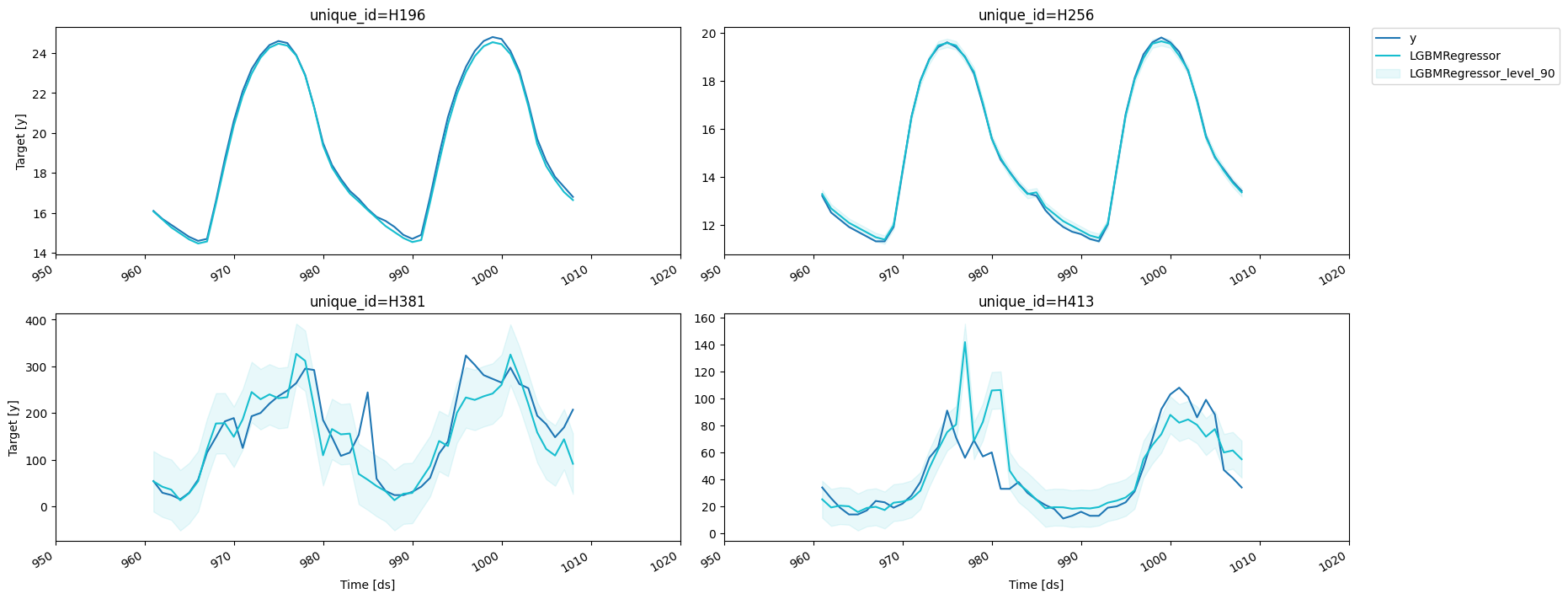

Let’s explore the generated intervals.

results = valid.merge(predictions_w_intervals_ws_1, on=['unique_id', 'ds'])
fig = plot_series(forecasts_df=results, level=[90])

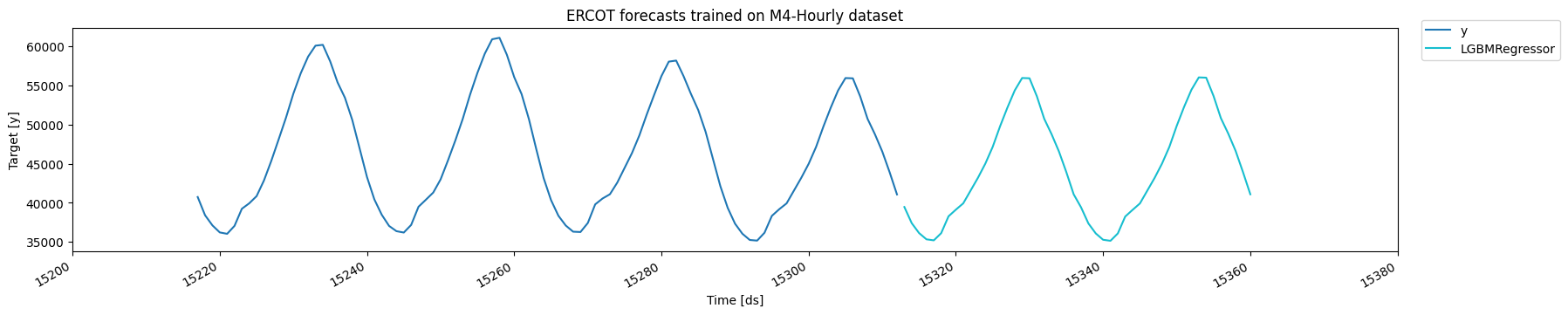

Forecast using a pretrained model

MLForecast allows you to use a pretrained model to generate forecasts for a new dataset. Simply provide a pandas dataframe containing the new observations as the value for the new_df argument when calling the predict method. The dataframe should have the same structure as the one used to fit the model, including any features and time series data. The function will then use the pretrained model to generate forecasts for the new observations. This allows you to easily apply a pretrained model to a new dataset and generate forecasts without the need to retrain the model.

ercot_df = pd.read_csv('https://datasets-nixtla.s3.amazonaws.com/ERCOT-clean.csv')
# we have to convert the ds column to integers
# since MLForecast was trained with that structure
ercot_df['ds'] = np.arange(1, len(ercot_df) + 1)
# use the `new_df` argument to pass the ercot dataset
ercot_fcsts = fcst.predict(horizon, new_df=ercot_df)
fig = plot_series(ercot_df, ercot_fcsts, max_insample_length=48 * 2)

If you want to take a look at the data that will be used to train the models you can call Forecast.preprocess.

---

source

MLForecast.preprocess

 MLForecast.preprocess (df:~DFType, id_col:str='unique_id',
                        time_col:str='ds', target_col:str='y',
                        static_features:Optional[List[str]]=None,
                        dropna:bool=True, keep_last_n:Optional[int]=None,
                        max_horizon:Optional[int]=None,
                        return_X_y:bool=False, as_numpy:bool=False,
                        weight_col:Optional[str]=None)

Add the features to data.

	Type	Default	Details
df	DFType		Series data in long format.
id_col	str	unique_id	Column that identifies each serie.
time_col	str	ds	Column that identifies each timestep, its values can be timestamps or integers.
target_col	str	y	Column that contains the target.
static_features	Optional	None	Names of the features that are static and will be repeated when forecasting.
dropna	bool	True	Drop rows with missing values produced by the transformations.
keep_last_n	Optional	None	Keep only these many records from each serie for the forecasting step. Can save time and memory if your features allow it.
max_horizon	Optional	None	Train this many models, where each model will predict a specific horizon.
return_X_y	bool	False	Return a tuple with the features and the target. If False will return a single dataframe.
as_numpy	bool	False	Cast features to numpy array. Only works for return_X_y=True.
weight_col	Optional	None	Column that contains the sample weights.
Returns	Union		df plus added features and target(s).

prep_df = fcst.preprocess(train)
prep_df

	unique_id	ds	y	lag24	lag48	lag72	lag96	lag120	lag144	lag168	exponentially_weighted_mean_lag48_alpha0.3
86988	H196	193	0.1	0.0	0.0	0.0	0.3	0.1	0.1	0.3	0.002810
86989	H196	194	0.1	-0.1	0.1	0.0	0.3	0.1	0.1	0.3	0.031967
86990	H196	195	0.1	-0.1	0.1	0.0	0.3	0.1	0.2	0.1	0.052377
86991	H196	196	0.1	0.0	0.0	0.0	0.3	0.2	0.1	0.2	0.036664
86992	H196	197	0.0	0.0	0.0	0.1	0.2	0.2	0.1	0.2	0.025665
…	…	…	…	…	…	…	…	…	…	…	…
325187	H413	956	0.0	10.0	1.0	6.0	-53.0	44.0	-21.0	21.0	7.963225
325188	H413	957	9.0	10.0	10.0	-7.0	-46.0	27.0	-19.0	24.0	8.574257
325189	H413	958	16.0	8.0	5.0	-9.0	-36.0	32.0	-13.0	8.0	7.501980
325190	H413	959	-3.0	17.0	-7.0	2.0	-31.0	22.0	5.0	-2.0	3.151386
325191	H413	960	15.0	11.0	-6.0	-5.0	-17.0	22.0	-18.0	10.0	0.405970

If we do this we then have to call Forecast.fit_models, since this only stores the series information.

---

source

MLForecast.fit_models

 MLForecast.fit_models (X:Union[pandas.core.frame.DataFrame,polars.datafra
                        me.frame.DataFrame,numpy.ndarray],
                        y:numpy.ndarray)

Manually train models. Use this if you called MLForecast.preprocess beforehand.

	Type	Details
X	Union	Features.
y	ndarray	Target.
Returns	MLForecast	Forecast object with trained models.

X, y = prep_df.drop(columns=['unique_id', 'ds', 'y']), prep_df['y']
fcst.fit_models(X, y)

MLForecast(models=[LGBMRegressor], freq=1, lag_features=['lag24', 'lag48', 'lag72', 'lag96', 'lag120', 'lag144', 'lag168', 'exponentially_weighted_mean_lag48_alpha0.3'], date_features=[], num_threads=1)

predictions2 = fcst.predict(horizon)
pd.testing.assert_frame_equal(predictions, predictions2)

---

source

MLForecast.cross_validation

 MLForecast.cross_validation (df:~DFType, n_windows:int, h:int,
                              id_col:str='unique_id', time_col:str='ds',
                              target_col:str='y',
                              step_size:Optional[int]=None,
                              static_features:Optional[List[str]]=None,
                              dropna:bool=True,
                              keep_last_n:Optional[int]=None,
                              refit:Union[bool,int]=True,
                              max_horizon:Optional[int]=None, before_predi
                              ct_callback:Optional[Callable]=None, after_p
                              redict_callback:Optional[Callable]=None, pre
                              diction_intervals:Optional[mlforecast.utils.
                              PredictionIntervals]=None,
                              level:Optional[List[Union[int,float]]]=None,
                              input_size:Optional[int]=None,
                              fitted:bool=False, as_numpy:bool=False,
                              weight_col:Optional[str]=None)

Perform time series cross validation. Creates n_windows splits where each window has h test periods, trains the models, computes the predictions and merges the actuals.

	Type	Default	Details
df	DFType		Series data in long format.
n_windows	int		Number of windows to evaluate.
h	int		Forecast horizon.
id_col	str	unique_id	Column that identifies each serie.
time_col	str	ds	Column that identifies each timestep, its values can be timestamps or integers.
target_col	str	y	Column that contains the target.
step_size	Optional	None	Step size between each cross validation window. If None it will be equal to h.
static_features	Optional	None	Names of the features that are static and will be repeated when forecasting.
dropna	bool	True	Drop rows with missing values produced by the transformations.
keep_last_n	Optional	None	Keep only these many records from each serie for the forecasting step. Can save time and memory if your features allow it.
refit	Union	True	Retrain model for each cross validation window. If False, the models are trained at the beginning and then used to predict each window. If positive int, the models are retrained every refit windows.
max_horizon	Optional	None
before_predict_callback	Optional	None	Function to call on the features before computing the predictions. This function will take the input dataframe that will be passed to the model for predicting and should return a dataframe with the same structure. The series identifier is on the index.
after_predict_callback	Optional	None	Function to call on the predictions before updating the targets. This function will take a pandas Series with the predictions and should return another one with the same structure. The series identifier is on the index.
prediction_intervals	Optional	None	Configuration to calibrate prediction intervals (Conformal Prediction).
level	Optional	None	Confidence levels between 0 and 100 for prediction intervals.
input_size	Optional	None	Maximum training samples per serie in each window. If None, will use an expanding window.
fitted	bool	False	Store the in-sample predictions.
as_numpy	bool	False	Cast features to numpy array.
weight_col	Optional	None	Column that contains the sample weights.
Returns	DFType		Predictions for each window with the series id, timestamp, last train date, target value and predictions from each model.

If we would like to know how good our forecast will be for a specific model and set of features then we can perform cross validation. What cross validation does is take our data and split it in two parts, where the first part is used for training and the second one for validation. Since the data is time dependant we usually take the last x observations from our data as the validation set.

This process is implemented in MLForecast.cross_validation, which takes our data and performs the process described above for n_windows times where each window has h validation samples in it. For example, if we have 100 samples and we want to perform 2 backtests each of size 14, the splits will be as follows:

1. Train: 1 to 72. Validation: 73 to 86.
2. Train: 1 to 86. Validation: 87 to 100.

You can control the size between each cross validation window using the step_size argument. For example, if we have 100 samples and we want to perform 2 backtests each of size 14 and move one step ahead in each fold (step_size=1), the splits will be as follows:

1. Train: 1 to 85. Validation: 86 to 99.
2. Train: 1 to 86. Validation: 87 to 100.

You can also perform cross validation without refitting your models for each window by setting refit=False. This allows you to evaluate the performance of your models using multiple window sizes without having to retrain them each time.

fcst = MLForecast(
    models=lgb.LGBMRegressor(random_state=0, verbosity=-1),
    freq=1,
    lags=[24 * (i+1) for i in range(7)],
    lag_transforms={
        1: [RollingMean(window_size=24)],
        24: [RollingMean(window_size=24)],
        48: [ExponentiallyWeightedMean(alpha=0.3)],
    },
    num_threads=1,
    target_transforms=[Differences([24])],
)
cv_results = fcst.cross_validation(
    train,
    n_windows=2,
    h=horizon,
    step_size=horizon,
    fitted=True,
)
cv_results

	unique_id	ds	cutoff	y	LGBMRegressor
0	H196	865	864	15.5	15.373393
1	H196	866	864	15.1	14.973393
2	H196	867	864	14.8	14.673393
3	H196	868	864	14.4	14.373393
4	H196	869	864	14.2	14.073393
…	…	…	…	…	…
379	H413	956	912	59.0	64.284167
380	H413	957	912	58.0	64.830429
381	H413	958	912	53.0	40.726851
382	H413	959	912	38.0	42.739657
383	H413	960	912	46.0	52.802769

Since we set fitted=True we can access the predictions for the training sets as well with the cross_validation_fitted_values method.

fcst.cross_validation_fitted_values()

	unique_id	ds	fold	y	LGBMRegressor
0	H196	193	0	12.7	12.673393
1	H196	194	0	12.3	12.273393
2	H196	195	0	11.9	11.873393
3	H196	196	0	11.7	11.673393
4	H196	197	0	11.4	11.473393
…	…	…	…	…	…
5563	H413	908	1	49.0	50.620196
5564	H413	909	1	39.0	35.972331
5565	H413	910	1	29.0	29.359678
5566	H413	911	1	24.0	25.784563
5567	H413	912	1	20.0	23.168413

We can also compute prediction intervals by passing a configuration to prediction_intervals as well as values for the width through levels.

cv_results_intervals = fcst.cross_validation(
    train,
    n_windows=2,
    h=horizon,
    step_size=horizon,
    prediction_intervals=PredictionIntervals(h=horizon),
    level=[80, 90]
)
cv_results_intervals

	unique_id	ds	cutoff	y	LGBMRegressor	LGBMRegressor-lo-90	LGBMRegressor-lo-80	LGBMRegressor-hi-80	LGBMRegressor-hi-90
0	H196	865	864	15.5	15.373393	15.311379	15.316528	15.430258	15.435407
1	H196	866	864	15.1	14.973393	14.940556	14.940556	15.006230	15.006230
2	H196	867	864	14.8	14.673393	14.606230	14.606230	14.740556	14.740556
3	H196	868	864	14.4	14.373393	14.306230	14.306230	14.440556	14.440556
4	H196	869	864	14.2	14.073393	14.006230	14.006230	14.140556	14.140556
…	…	…	…	…	…	…	…	…	…
379	H413	956	912	59.0	64.284167	29.890099	34.371545	94.196788	98.678234
380	H413	957	912	58.0	64.830429	56.874572	57.827689	71.833169	72.786285
381	H413	958	912	53.0	40.726851	35.296195	35.846206	45.607495	46.157506
382	H413	959	912	38.0	42.739657	35.292153	35.807640	49.671674	50.187161
383	H413	960	912	46.0	52.802769	42.465597	43.895670	61.709869	63.139941

The refit argument allows us to control if we want to retrain the models in every window. It can either be:

• A boolean: True will retrain on every window and False only on the first one.
• A positive integer: The models will be trained on the first window and then every refit windows.

fcst = MLForecast(
    models=LinearRegression(),
    freq=1,
    lags=[1, 24],
)
for refit, expected_models in zip([True, False, 2], [4, 1, 2]):
    fcst.cross_validation(
        train,
        n_windows=4,
        h=horizon,
        refit=refit,
    )
    test_eq(len(fcst.cv_models_), expected_models)

fig = plot_series(forecasts_df=cv_results.drop(columns='cutoff'))

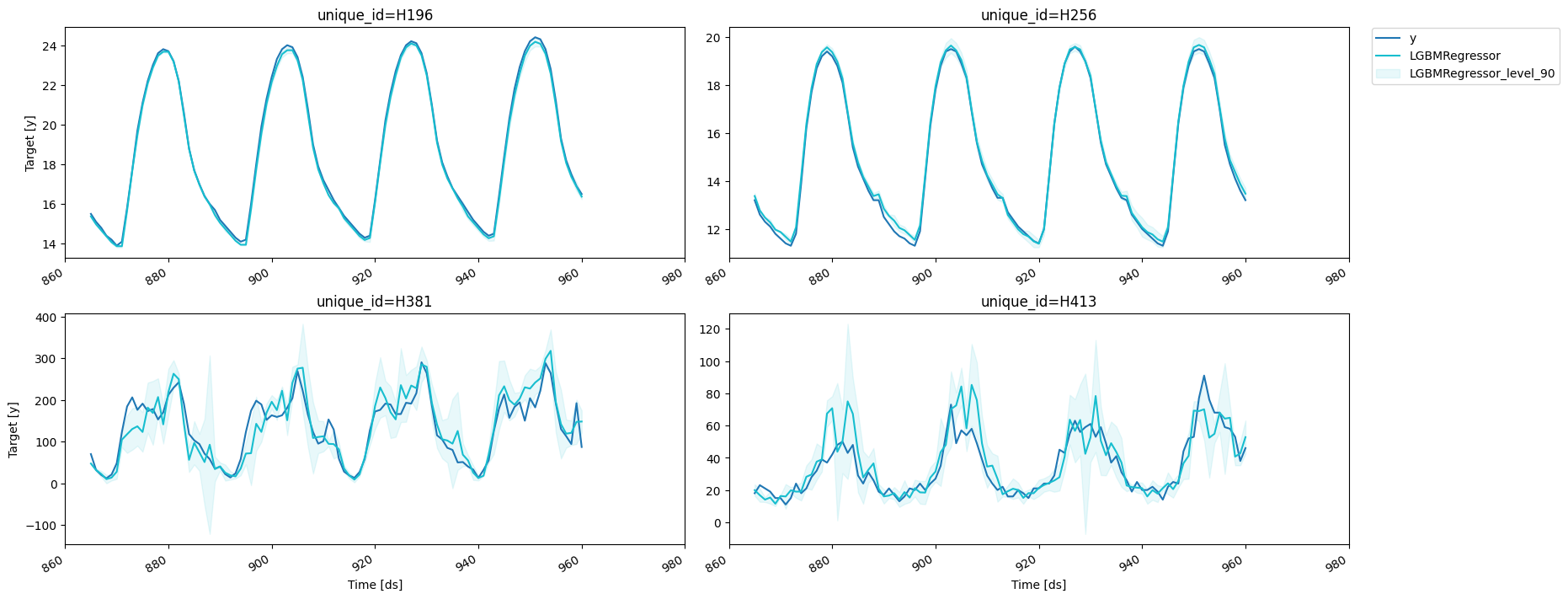

fig = plot_series(forecasts_df=cv_results_intervals.drop(columns='cutoff'), level=[90])

---

source

MLForecast.from_cv

 MLForecast.from_cv (cv:mlforecast.lgb_cv.LightGBMCV)

Once you’ve found a set of features and parameters that work for your problem you can build a forecast object from it using MLForecast.from_cv, which takes the trained LightGBMCV object and builds an MLForecast object that will use the same features and parameters. Then you can call fit and predict as you normally would.

cv = LightGBMCV(
    freq=1,
    lags=[24 * (i+1) for i in range(7)],
    lag_transforms={
        48: [ExponentiallyWeightedMean(alpha=0.3)],
    },
    num_threads=1,
    target_transforms=[Differences([24])]
)
hist = cv.fit(
    train,
    n_windows=2,
    h=horizon,
    params={'verbosity': -1},
)

[10] mape: 0.118569
[20] mape: 0.111506
[30] mape: 0.107314
[40] mape: 0.106089
[50] mape: 0.106630
Early stopping at round 50
Using best iteration: 40

fcst = MLForecast.from_cv(cv)
assert cv.best_iteration_ == fcst.models['LGBMRegressor'].n_estimators
